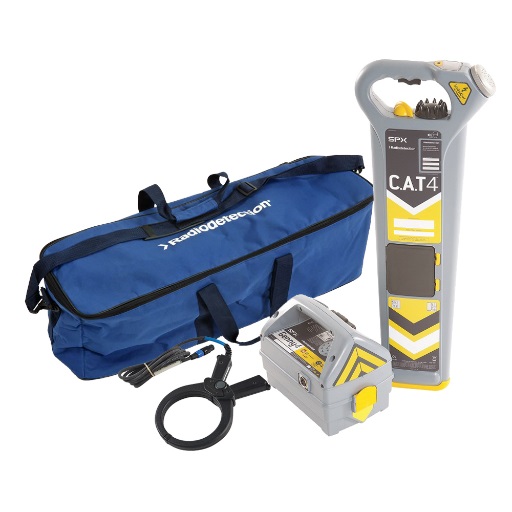

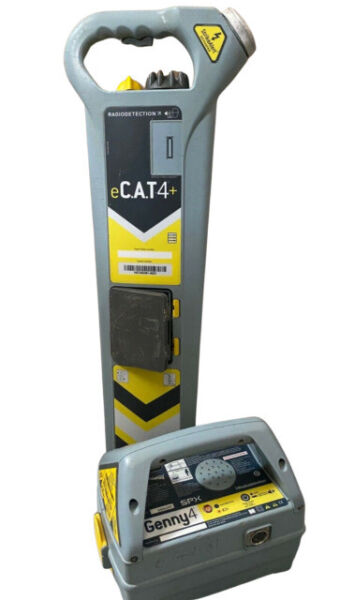

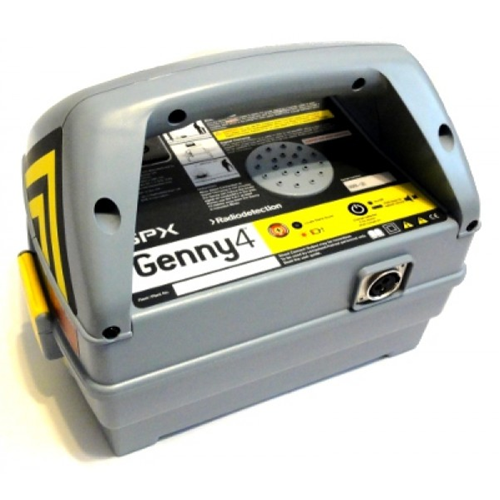

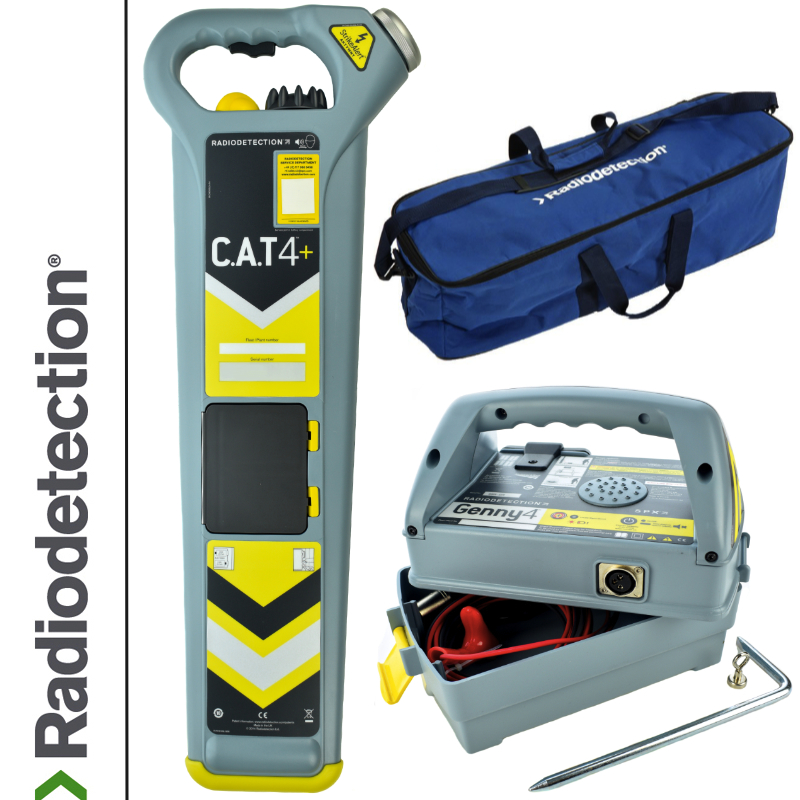

Radiodetection CAT4+ and Genny4 Underground Cable Locator

Description

Radiodetection (UK) CAT4+ Cable detector with depth indication

This CAT4+ is a cable detector with depth indication. This model offers all possibilities to map the underground infrastructure

With the CAT4+ cable locator with depth indication, cables and pipes can be easily located. The model is the founder of the Radiodetection Range. In combination with the matching signal generator, this device can itself give a depth indication of the underlying cable or pipe.

Through detection with this cable detector, the underground infrastructure can be mapped. This is ideal when the current network has to be avoided in order to install new cables and pipes. This can prevent excavation and personal injury. The Radiodetection cable detector has various search modes that can be used to detect cables and pipes. So much is possible with the CAT4+.

Specification
Article number: CAT4+NL31
Measurement accuracy: 10%
Measure modes:Power, Radio, Generator, Probe
Measuring range depth current mode: 3 meters
Measuring range depth radio mode: 2 meters
Measuring range depth generator mode:4 meters
Measuring range depth probe mode: 7 meters
Depth indication: Yes, in combination with signal generator
Measuring range depth indication: 0.1 to 4 meters (generator)
Measuring range depth indication: 0.1 to 7 meters (probe)
Depth indication accuracy: 5%
Frequency detection: 131kHz, 33kHz
Bluetooth® : No
GPS: No
Danger zone warning: Yes
Data logging: No
Maintenance indication: No
Annual calibration: Yes
Self-calibration: No
Wave alarm: No
Color display: No
Memory: No
Power supply: 2x D-Cell battery
Working time: 40 hours
Weight: 2.3 kg
Size: 720 x 280 x 65mm
Protection: IP54
Operating temperature: -20ºC to +50ºC
