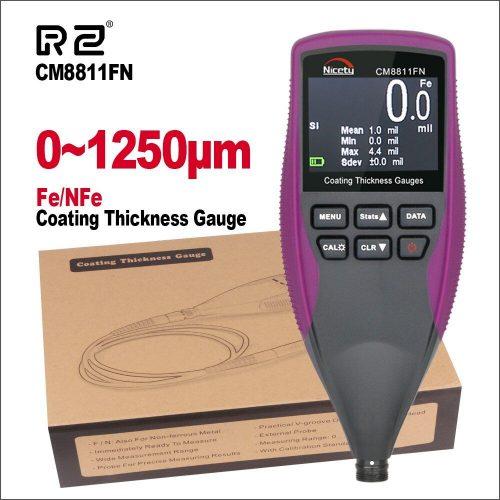

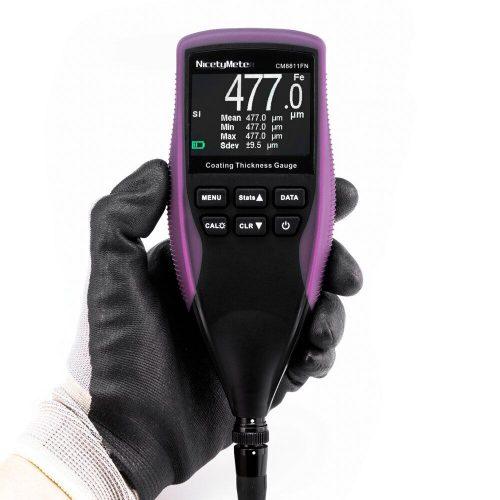

Coating Thickness Gauge DTF Meter Paint Tester

Nicety (Taiwan) Elcometer Similar Paint Coating Thickness Gauge with External probe system

Measuring:Continuous and Single Measurement available
Display: Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation
Memory:50 data store
Unit:Metric/Imperial switchable (mil/um delectable)
Alarm:Set higher and lower alarm range for measuring
Calibration:Zero-in, 2 points calibration and multi-point calibration selectable
Battery: Low battery indication
Language:English and Chinese selectable (customization for other languages available)
Data delete:delete a single data or clear all the data

Range: 0-1250um /0-50mil
Resolution: 0.1um/mil
Accuracy: +/-(2%+2μm) / +/-(2%+0.1mil)
Display: TFT 320*240 LCD
Surface curvature: convex 1.5 mm / concave 7 mm
Minimum test surface: Φ8mm
Minimum thickness of base material: 0.4mm
Operation Condition(not in high magnetic field):Temperature: 0C”>~40C
Humidity: 20%RH-90RH
Product Size: 166 x 68 x 30mm
Weight: 180g (batteries included)

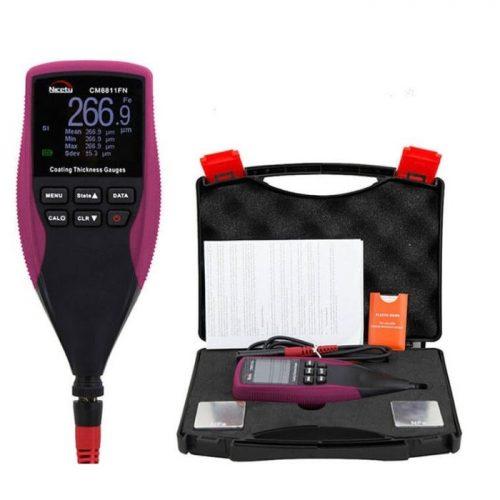

Standard Individual Packing:Fe / NFe probes.Set of plastic test shims and 2 reference calibration plates (Steel and Aluminum).Hard shell storage case.Instruction manual.
