Thermal Imaging Camera Infrared Thermal Imager

Description

Thermal Imaging Camera Infrared Thermal Imager

Professional Handheld Infrared Thermal Imaging Camera IR Digital Thermal Imaging Camera infrared thermometer Detector

BRIGHT FEATURES

30,000 PIXELS
Can easily see Hot Spot or Cold Spot patterns
Reliably measure temperature
Store images for instant troubleshooting
Quickly and accurately identifies areas of hidden issues to save power and expense.

SPECIFICATIONS

IR Infra Red Image Resolution: 33 x 33 , 1089 pixels
Display Screen: 2.5″ Full angle HD
Display Resolution : 240 x 320 pixels
Visible Image Resolution:0.3 mega pixels Image
Temperature Range: -20 to 380 °C /-4 to 716° F
Thermal Sensitivity: 0.15°C
Temperature Accuracy:+/- 2 % or +/- 2 °C
Capturing Frequency: 9 Hz
Long-infrared range electromagnetic spectrum (8–14 µm)
Remote Sensing – Rugged, accurate and reliable

FEATURES

TFT full view color screen display
Dual MCU processors, refresh faster
Hot and cold point temperature markers can guide users to the areas with the highest and lowest temperature in the thermal image.

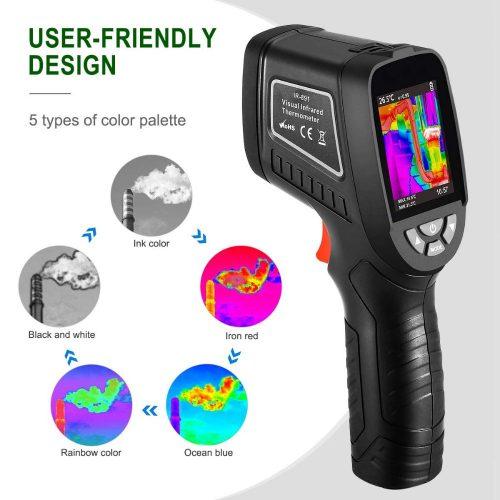

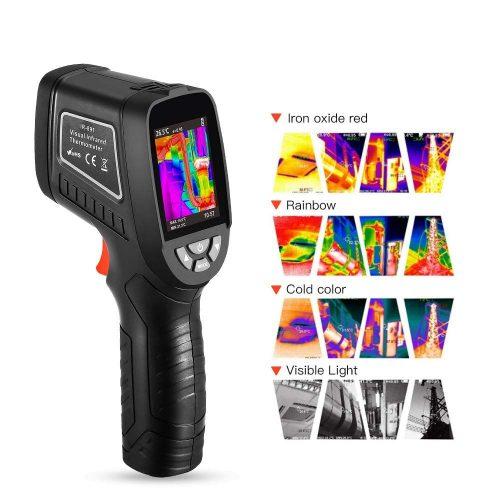

Selectable palette
Hybrid imaging of visual and infrared images
Images capture saved in SD card
Connecting PC with USB can read the image stored in instrument directly.
Connect USB with other power supply and meter, US an power supply to meter directly

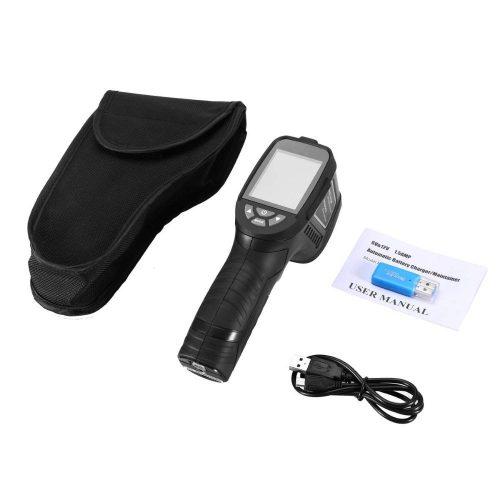

ACCESSORIES

1 x Thermal Infrared Imager (Battery do not included)
1 x SD Card(8G)
1 x SD Card Reader
1 x USB Cable
1 x User Manual
1 x Canvas bag
