Concrete Rebar Locator Concrete Covermeter

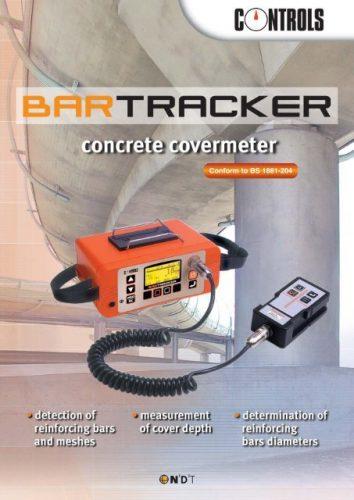

“CONTROLS” (Italy) Bartracker Concrete Covermeter (Rebar Locator) use to measure the thickness of concrete cover over steel reinforcement bars and metal pipes. Furthermore it is also used to identify the location, orientation and diameter of reinforcement bars (rebar)

Main Features

Rebar location

Rebar orientation

Depth of cover

Cover reading thickness mm or inches

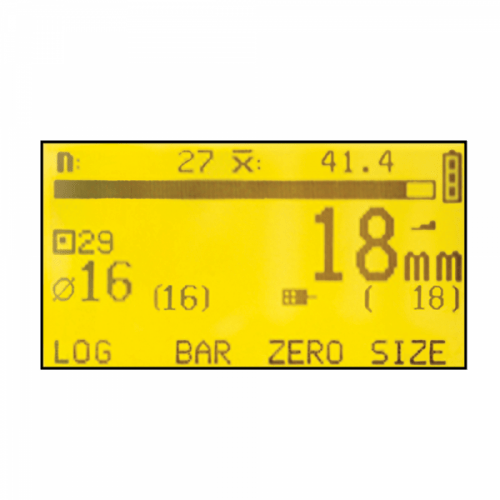

Large graphic display with back light

Multiple language menu structure

Signal strength bar

Interchangeable heads with led and keypad

User selectable bar range sizes and numbers

Auto size mode for quick bar diameter determination

Orthogonal mode for bar diameter determination

Other models of search head available on order for Narrow pitch search, Deep cover search, Borehole. See accessories.

RS 232 output to PC

EDTS MS EXCEL link software

Data logging

Adjustable beep volume & earphone socket

Accessories Included

1. Bartracker (Main Unit)

2. Standard search head to meet most of measurement requirements to identify 40 mm dia. bar up to 95 mm depth (approx.), 8 mm dia. bar up to 70 mm depth (approx.), sensing area 120×60 mm.

3. PC cable

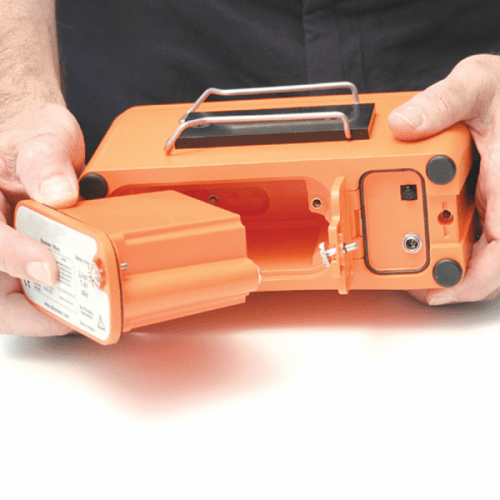

4. Battery pack and charger

5. Shoulder strap

6. Earphone

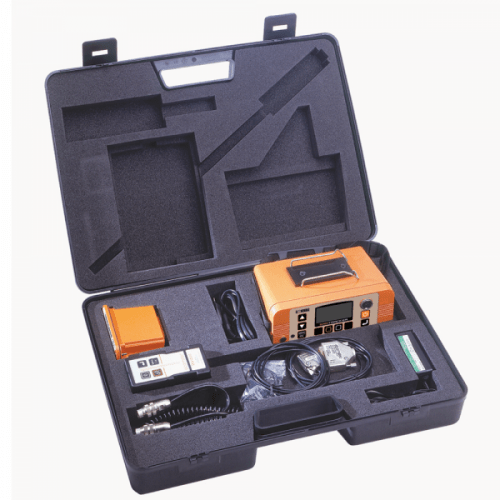

7. Carry case and instruction manual


1 Year
