Ultrasonic Thickness Gauge

“WINTACT” Ultrasonic Thickness Gauge Meter Model WT100

It is transmitted at a constant speed and can distinguish waves reflected from the back side for this instrument.

It can also be widely used in manufacturing, metal processing, commodity inspection and other materials that allow ultrasonic waves.

Wide application: The ultrasonic thickness gauge is suitable for the material that conduct and reflect constant sonic , such as metal, plastic, ceramic, glass, etc.


Measuring range : 1.00 -225.0mm
Data storage: 500
Operation frequency : 5MHz
Measurement error: ±(0.5%H+0.05)mm
Lower limit of pipe measurement: 20x3mm (steel)
Adjustment range of sound speed: 1000-9999m/s
Temperature range of operation: 0 -40C
Battery: 3 Ni-MH rechargeable batteries of 1.2V
USB charging: 5V 1A

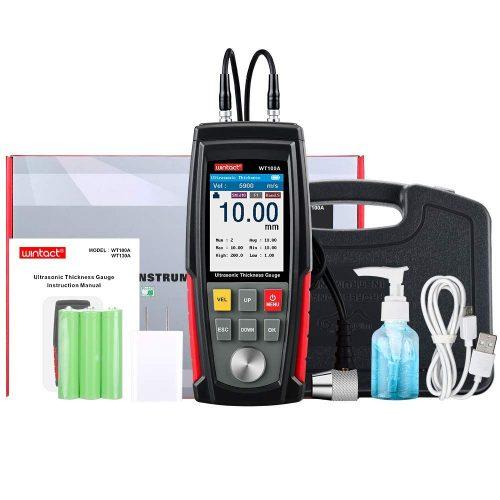

Accessories Included
1x Digital Ultrasonic Thickness Gauge
1x Probe
1x Retail Case
1x Charger
1x Use’s Manual
