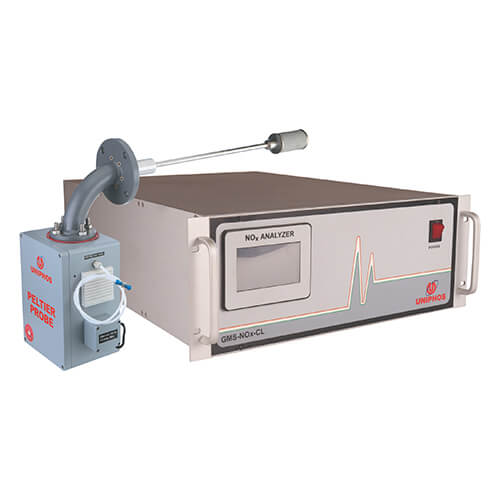

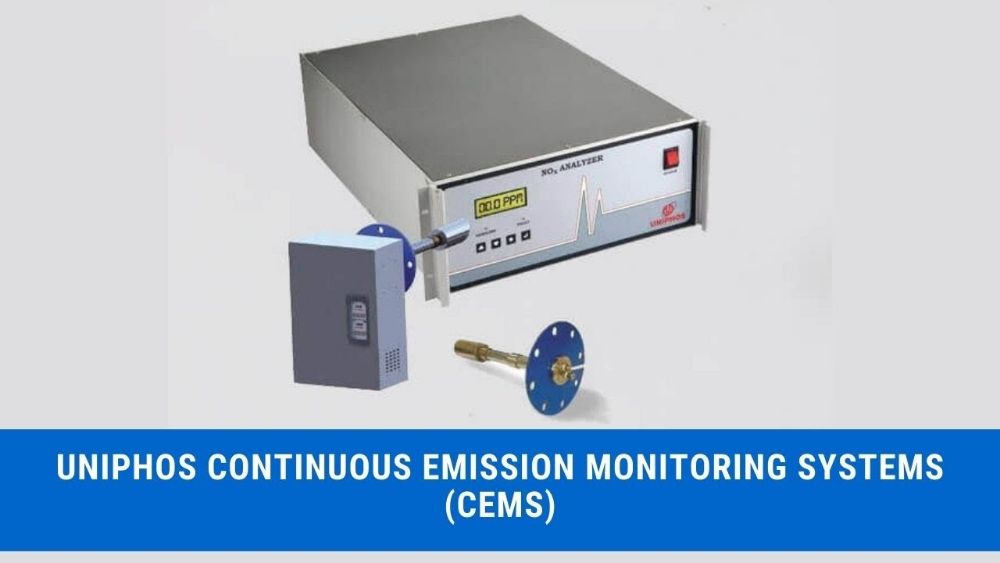

UNIPHOS Online Continuous Emission Monitoring System (CEMS)

Description

“Uniphos” CEMS is robust, well-engineered and a reliable solution for continuous measurement and monitoring of various toxic gases in industrial boiler and process stacks. It is an Online Analyzer with inbuilt diagnostics and capable of Auto/Remote calibration. Our wide range of emission monitoring analyzers provide a complete solution for stack monitoring and ensures a safe and clean environment.

Uniphos CEMS are available based on different technologies depending upon the suitability and user’s requirement:

Highly sensitive & gas specific Chemiluminescence / Fluorescence based NOx and SO2 Gas Analyzers

Non-Dispersive Infrared (NDIR) based Analyzers

TDLAS based Analyzers

UV-DOAS based Analyzers

Available for SO2, NOx, O2, CO2, CH4, HCL, NH, HF, NH3, etc

SPECIFICATION

Measurement Method: UV Fluorescence/ Chemiluminescence

Measuring Range: 0-100/0-1000/0-2000 ppm

Resolution: 1 ppm

Current Output: 4-20 mA

Communication Port: RS-232/RS-485

Data Logging: Supports Internal Data Logging

Power: 230 VAC, 50Hz
