Borehole inspection camera underwater deep well bore inspection camera

Description

Borehole inspection camera underwater deep well bore inspection camera

Borehole inspection camera mainly used in underwater, water well, hydrology, mining, drilling hole, petroleum, geotechnical, pipe etc, Cable length 300 Meter

(Optional 500 to 1000 Meter)

It can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc., such as lithology, rock structure, geological structure, river survey, water bore, and water well inspection.

Camera Specification
Resolution: 850TVL

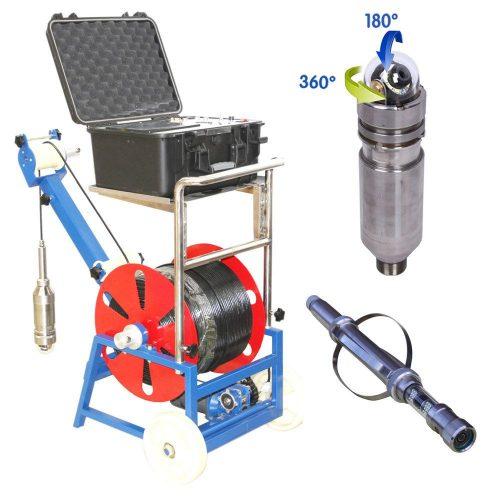

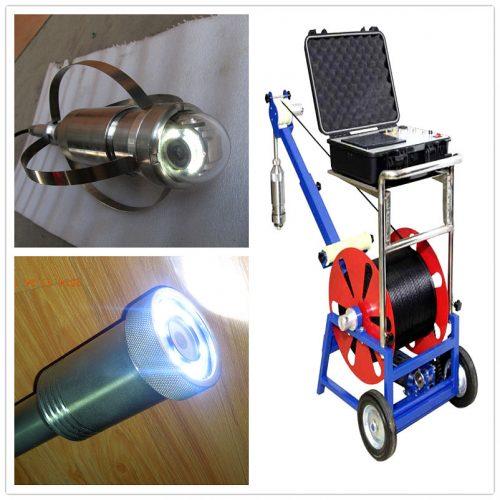

Lights: LED, auto- back light compensation. Camera: 360 degrees horizontal rotation and 180 degrees vertical rotation camera
Camera Focus: adjustable (better than fixed focus)
Pressure: Max. 15 Mpa (150 bar)
Material: stainless steel
Diameter: 75 mm

Winch Specification
Automatic electric winch, adopt second frequency conversion technology
High quality RV gearbox
With speed controller, freely adjustment for winch speed
Equipped with depth counter

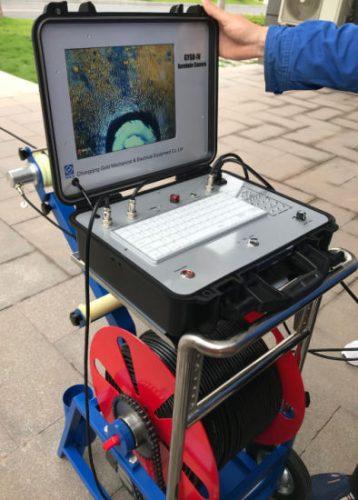

Camera System Details
Color 8 “LCD Resolution:1024 * 768
Built-in DVR
16GB SD card for video recording
Display: depth, company name, time is available to display.
220V power, it also can be customized 12V DC6. Mini generator is optional for the field without manpower source
Easy to operate
