Electronic Digital Theodolite

Description

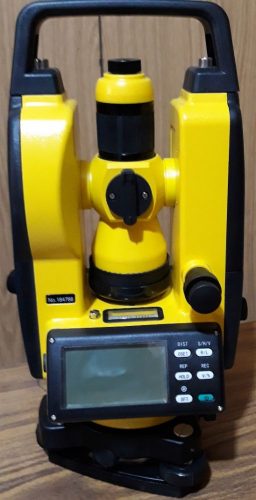

CTS (China) Electronic Digital Theodolite Model DGTS

TELESCOPE

Length of Telescope : 156 mm
Image: Erect
Objective Lens Aperture : 45 mm
Magnification : 30x
Field of View: 3.5″
Resolving Power: 1°30
Shortest Sighting Distance : 1.3 m
Stadia Ratio: 100
Stadia Constant: 0

ANGLE MEASUREMENT

Method : Absolute Encoding
Reading pattern : Horizontal circle: across;Vertical circle: across
Minimum Reading : 1″/5″
Accuracy : 2″
Display Panel : Double Sided
Electric incline sensor : vertical angle compensation
Range: ±0.3′

OUTPUT INTERFACE

Communication Standard : RS232C
EDM Interface: NO
Data Output Interface: YES

LASER PLUMMET

Laser Power: 5mw
Spot Diameter: Less than 2mm
Accuracy: 1mm/1.5m

BASE

Base Model: Detachable
Battery: Ni-mh Chargeable battery

LEVEL SENSITIVITY

Sensitivity of Long Vial : 30″/2mm
Sensitivity of Bubble : 8″/2mm
Weight: 4.8 kg

Warranty 1 Year
